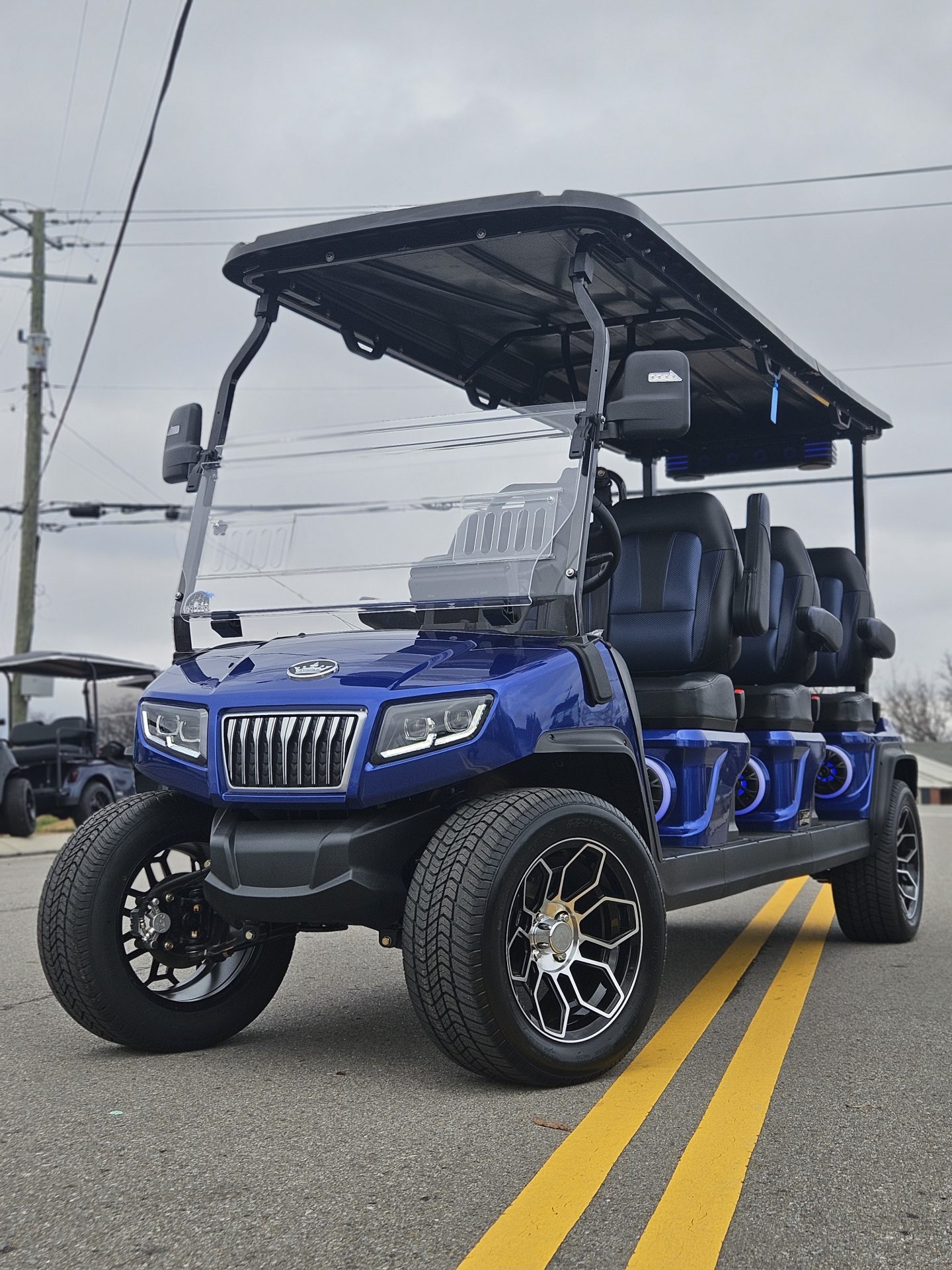

Blue 2025 Evolution D5 Ranger 6 Plus lithium Golf Cart

Description

2025 Evolution D5 Ranger 6 PLUS

Overview

• Model: 2025 Evolution D5 Ranger 6 PLUS

• Seating Capacity: 6 passengers (all forward-facing)

• Use Case: Luxury, street-legal golf / utility cart, ideal for groups, community cruising, resort, or LSV (with proper certification)

Powertrain & Performance

• Voltage: 48 V lithium battery

• Motor: 6.3 kW AC motor with EM (electric-magnetic) brake

• Controller: 400 A, AC controller

• On-board Charger: 25 A

• Top Speed: ~25 mph (≥ 40 km/h)

Dimensions & Weight

• Length × Width × Height: ~148 in × 55.8 in × 80.1 in

• Wheelbase: ~114.2 in

• Ground Clearance (minimum): ~7 in

• Curb Weight: ~1,058 lbs

• Max Gross Weight (GVWR): ~2,250 lbs

Chassis, Suspension & Wheels

• Chassis: Automotive-style, e-coat finish for corrosion resistance

• Suspension:

  • Front: Double wishbone, independent

  • Rear: Leaf spring

• Wheels & Tires: 14″ × 7″ aluminum wheels, 225/55R14 radial tires

Features & Comfort

• Steering: Adjustable (tilting) column

• Seating:

  • Two-tone luxury seats

  • Foldable armrests on seats

  • Seat-back cover with cupholder, handrail, storage pocket, USB charging ports

• Safety:

  • Three-point seat belts for all seats

  • EM brake for reliable stopping power

• Lighting: LED headlights, tail lights, turn signals, brake lights, daytime running lights

• Windshield: Foldable with sliding sub-windows for ventilation

• Bumper: Automobile-style rear bumper

Technology & Entertainment

• 9″ Multifunction Touchscreen Display

  • Speedometer / odometer

  • Driving gear indication

  • Light control / status

  • Bluetooth, radio, music

  • Backup camera display

  • Apple CarPlay & Android Auto compatibility

• Sound System: Premium Cuboid Evolution Sound Bar, with under-seat illuminated speakers (LED-reactive lighting)

• Storage: Rear trunk for cargo; glove box

• USB Charging: Ports for charging devices built-in to seatbacks / dash

• Mirrors: Powered side mirrors; rearview mirror included

• Horn: Standard horn included

• Controls: RFID Push-Button Start

Safety & Warranty

• Battery Warranty: ~8-year battery warranty

• Frame / Cart Warranty: 2 year parts / bumper-to-bumper

• Braking Safety: Includes EM brake + standard 3-point seat belts

Performance Capabilities

• Charging Time: ~4–5 hours

• Maximum Gradeability: ~25% full load

• Turning Radius: ~11.2 ft (minimum)
